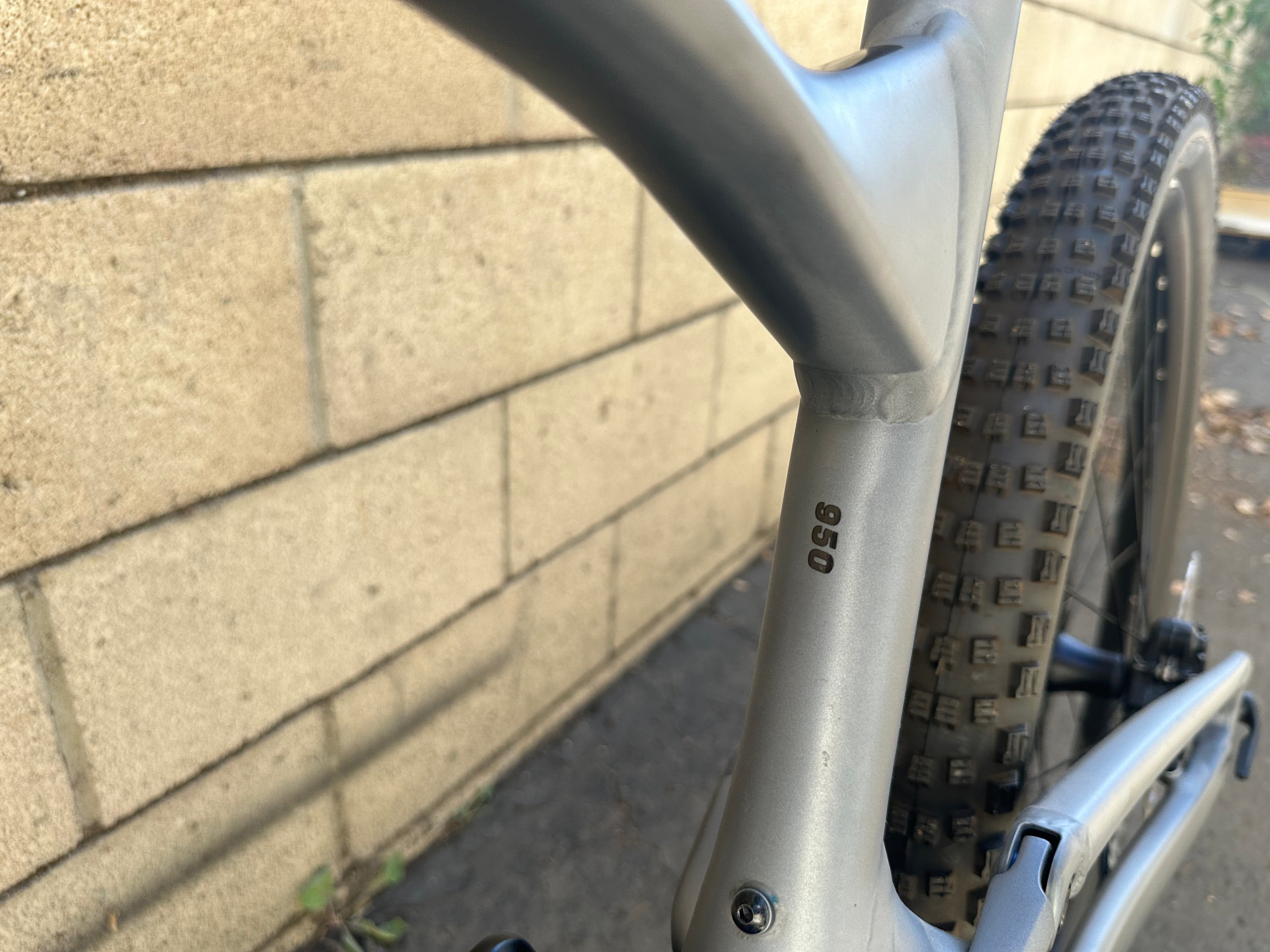

CUADRO

Spark Alloy SL 6011
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

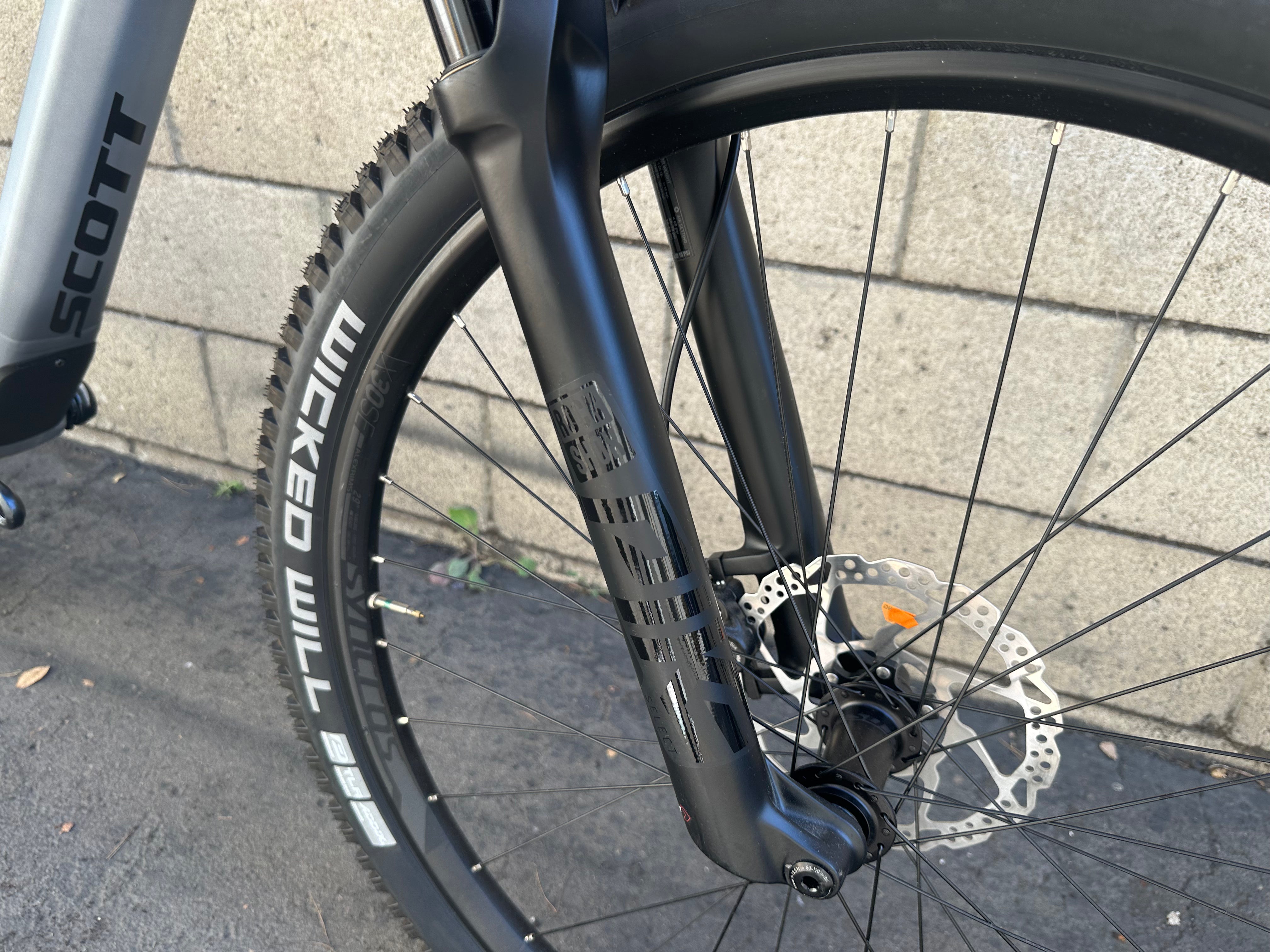

HORQUILLA

RockShox Pike Select RL3 Air Custom Charger 3-Mode Damper 15x110mm Maxle Lite / 42mm offset / Tapered steerer Lockout / Reb. Adj. / 130mm travel

AMORTIGUADOR TRASERO

RockShox Deluxe Select RL3 Trunnion 3 modes / Lockout-Trail-Descend Debon Air / Reb. Adj.
Travel 120mm / T165X45mm

SISTEMA REMOTO

SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

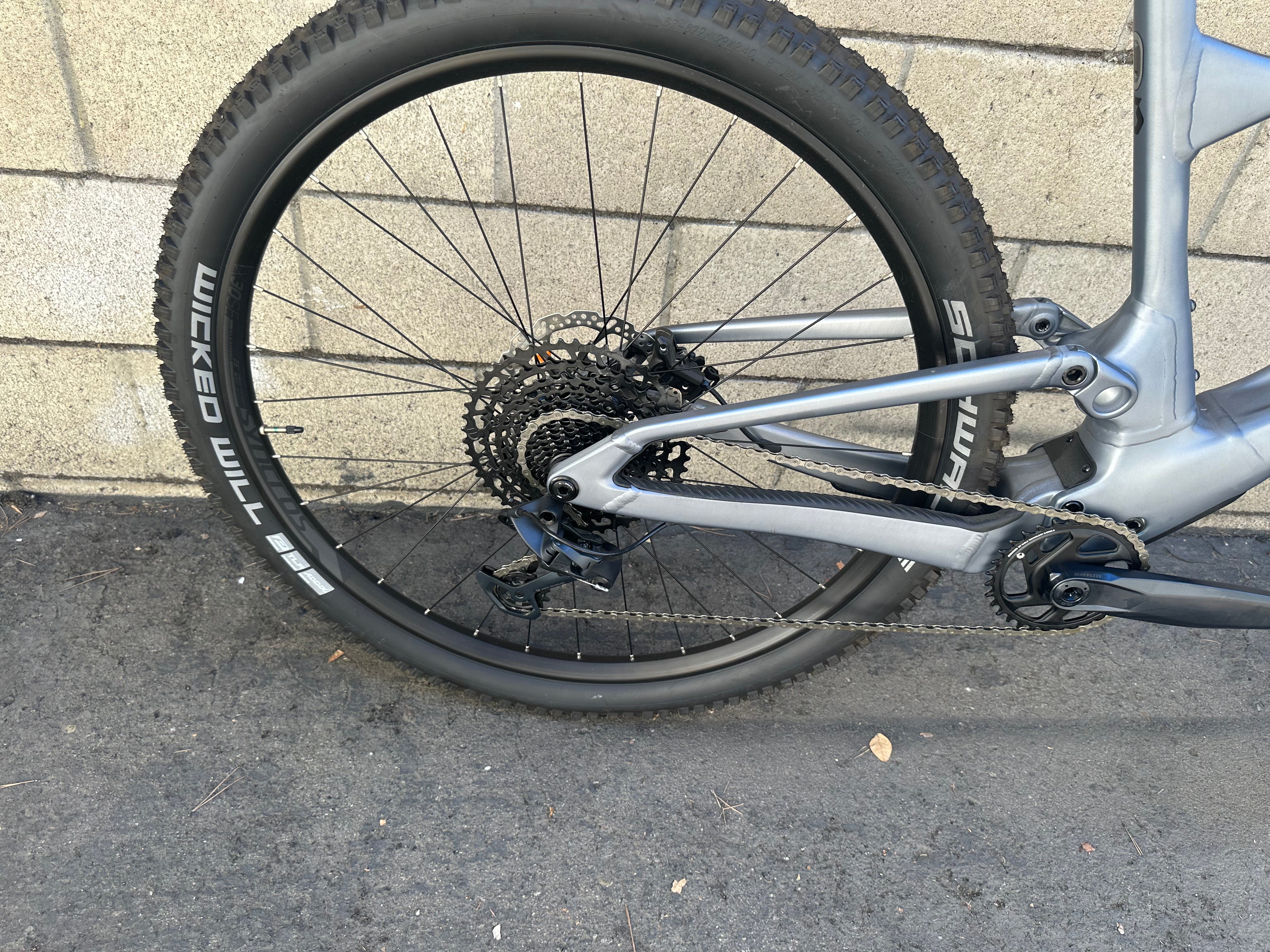

CAMBIO TRASERO

SRAM GX Eagle 12 Velocidades

MANETAS DE CAMBIO

SRAM NX Eagle Trigger

JUEGO DE BIELAS

SRAM X1 Eagle DUB 55mm CL / 32T

BB-SET

SRAM DUB PF 92 MTB Ancho / shell 41x92mm

CADENA

SRAM CN NX Eagle

CASSETTE

SRAM SX-PG1210 / 11-50 T

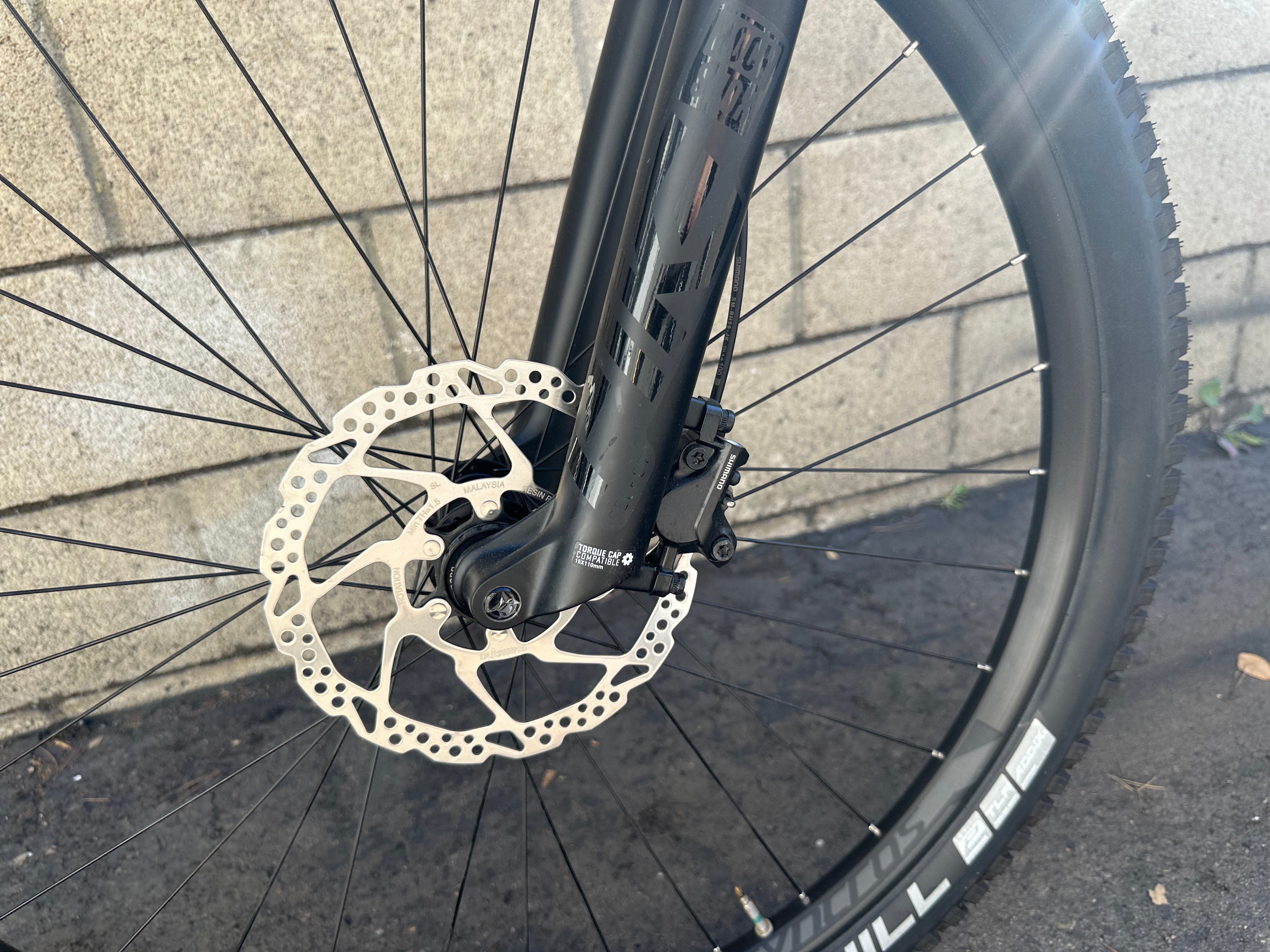

FRENOS

Disco Shimano MT501

ROTOR

Shimano SM-RT64 CL / D y T 180mm

MANILLAR

Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm
Syncros Pro lock-on grips

POTENCIA

Syncros DC 3.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"

TIJA DE SILLÍN

Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L & XL size 150mm

ASIENTO

Syncros Tofino 2.5 Regular

DIRECCIÓN

Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

BUJE (DELANTERO)

Formula CL-811 / 15x110mm

BUJE (TRASERO)

Formula CL-148S / 12x148mm Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

RADIOS

Negro inoxidable 15G / 1.8mm

LLANTAS

Syncros X-30SE / 32H / 30mm

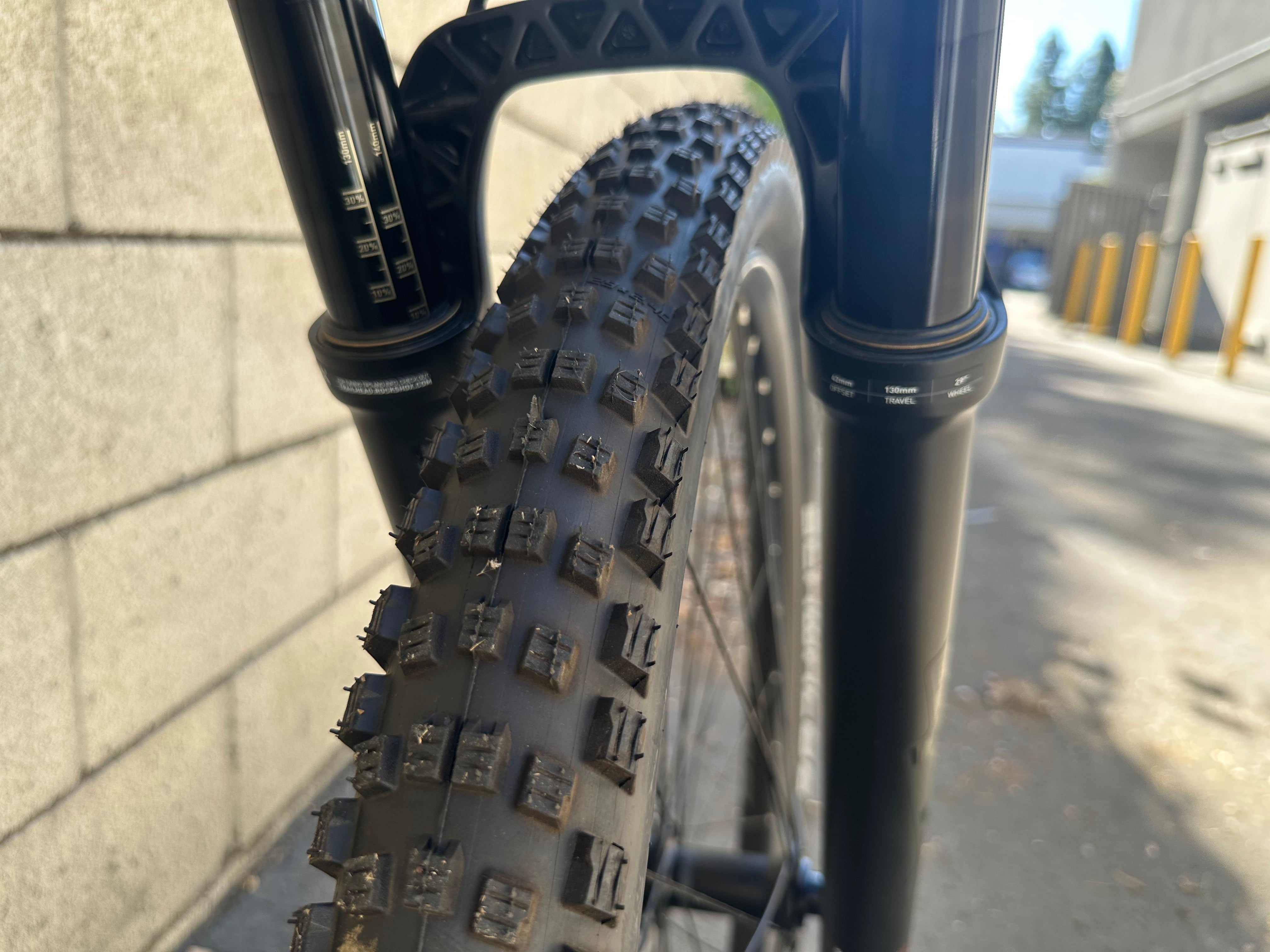

NEUMÁTICO DELANTERO

Schwalbe Wicked Will 29x2.4" Performance / TLR / Foldable / Addix

NEUMÁTICO TRASERO

Schwalbe Wicked Will / 29x2.4"
Performance / TLR / Foldable / Addix

PESOS APROXIMADOS EN KG

14.5 (con cámaras)

PESOS APROXIMADOS EN LIBRAS

31.97 (con cámaras)

PESO MÁXIMO DEL SISTEMA

128 kg
The overall weight includes the bike, the rider, the equipment, and possible
additional luggage.
