2026 Cervélo S5 Red AXS 1 Carbon Road Bike

About

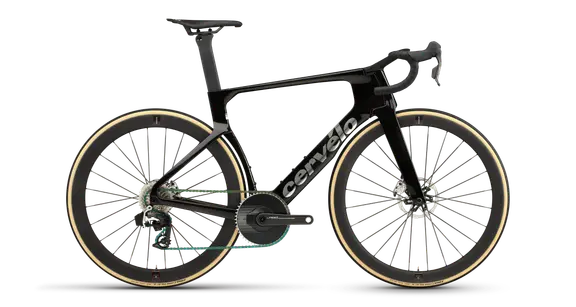

The Cervélo S5 Red AXS 1 is an elite aero road bike built for riders who demand maximum speed, aerodynamic efficiency, and race-winning performance. Its advanced carbon frame and Bayonet fork are engineered to minimize drag while maintaining exceptional stiffness and confident handling. Equipped with the latest SRAM Red AXS E1 wireless electronic drivetrain, integrated power meter, and hydraulic disc brakes, it delivers precise shifting and reliable stopping power in all conditions. The Reserve 57|64 Turbulent Aero carbon wheelset with DT Swiss 240 hubs enhances stability and responsiveness, making the S5 Red AXS 1 an outstanding choice for competitive road racing, fast training rides, and high-performance endurance events.

Frame: Cervélo S5 Carbon Frame
Fork: Cervélo All-Carbon Bayonet Fork
Groupset: SRAM Red AXS E1 2×12-Speed
Shifters: SRAM Red AXS E1 HRD
Front Derailleur: SRAM Red AXS E1
Rear Derailleur: SRAM Red AXS E1
Crankset: SRAM Red AXS E1 DUB, 50/37T with Integrated Power Meter
Bottom Bracket: SRAM DUB BBRight Ceramic
Cassette: SRAM Red XG-1290 E1, 10-33T, 12-Speed
Chain: SRAM Red Flattop E1
Brakes: SRAM Red Hydraulic Disc
Brake Rotors: SRAM Paceline X CenterLock, 160mm Front / 160mm Rear
Handlebar: Cervélo HB19 Carbon Integrated Cockpit
Stem: Cervélo HB19 Integrated
Seatpost: Cervélo SP34 Carbon Aero
Saddle: Selle Italia Novus Boost Evo SuperFlow Carbon
Headset: FSA IS2 Integrated
Tires: Vittoria Corsa Pro TLR G2.0, 700×29c
Wheelset: Reserve 57TA / 64TA Carbon with DT Swiss 240 Hubs
Pedals: Not Included
Weight: Approximately 7.3 kg (Varies by Size)

48 cm: Rider Height 5'2"–5'6", Wheel Size 700C, Reach 367mm, Stack 496mm, Top Tube 520mm, Seat Tube 432mm, Head Tube 69mm, Head Tube Angle 71.6°, Seat Tube Angle 73.8°, Chainstay 405mm, Wheelbase 974mm, Bottom Bracket Drop 72.5mm, Standover Height 694mm.
51 cm: Rider Height 5'5"–5'9", Wheel Size 700C, Reach 376mm, Stack 521mm, Top Tube 535mm, Seat Tube 463mm, Head Tube 90mm, Head Tube Angle 72.3°, Seat Tube Angle 73.5°, Chainstay 405mm, Wheelbase 981mm, Bottom Bracket Drop 72.5mm, Standover Height 719mm.
54 cm: Rider Height 5'8"–5'11", Wheel Size 700C, Reach 384mm, Stack 545mm, Top Tube 551mm, Seat Tube 496mm, Head Tube 114mm, Head Tube Angle 73.0°, Seat Tube Angle 73.5°, Chainstay 405mm, Wheelbase 990mm, Bottom Bracket Drop 70mm, Standover Height 750mm.
56 cm: Rider Height 5'10"–6'1", Wheel Size 700C, Reach 392mm, Stack 568mm, Top Tube 567mm, Seat Tube 519mm, Head Tube 137mm, Head Tube Angle 73.0°, Seat Tube Angle 73.5°, Chainstay 405mm, Wheelbase 1007mm, Bottom Bracket Drop 70mm, Standover Height 775mm.
58 cm: Rider Height 6'0"–6'3", Wheel Size 700C, Reach 401mm, Stack 591mm, Top Tube 583mm, Seat Tube 542mm, Head Tube 161mm, Head Tube Angle 73.0°, Seat Tube Angle 73.5°, Chainstay 405mm, Wheelbase 1023mm, Bottom Bracket Drop 67.5mm, Standover Height 800mm.
61 cm: Rider Height 6'2"–6'6", Wheel Size 700C, Reach 409mm, Stack 611mm, Top Tube 599mm, Seat Tube 575mm, Head Tube 183mm, Head Tube Angle 73.0°, Seat Tube Angle 73.5°, Chainstay 405mm, Wheelbase 1040mm, Bottom Bracket Drop 67.5mm, Standover Height 826mm.

Wheel Brand: Reserve
Wheel Model: Reserve 57TA Front / Reserve 64TA Rear
Wheel Size: 700C
Rim Material: Carbon Fiber
Rim Depth: 57mm Front / 64mm Rear
Internal Width: 25mm
External Width: 35mm
Hub: DT Swiss 240
Spokes: Sapim CX-Ray
Tire Compatibility: Tubeless & Clincher Compatible
Axle Compatibility: 12×100mm Front / 12×142mm Rear
Tubeless Ready: Yes
Approx. Weight: Approximately 1,560g (Wheelset)
