2026 Factor ELARA SRAM RED XPLR with Power Meter Gravel Race Bike

About

Description

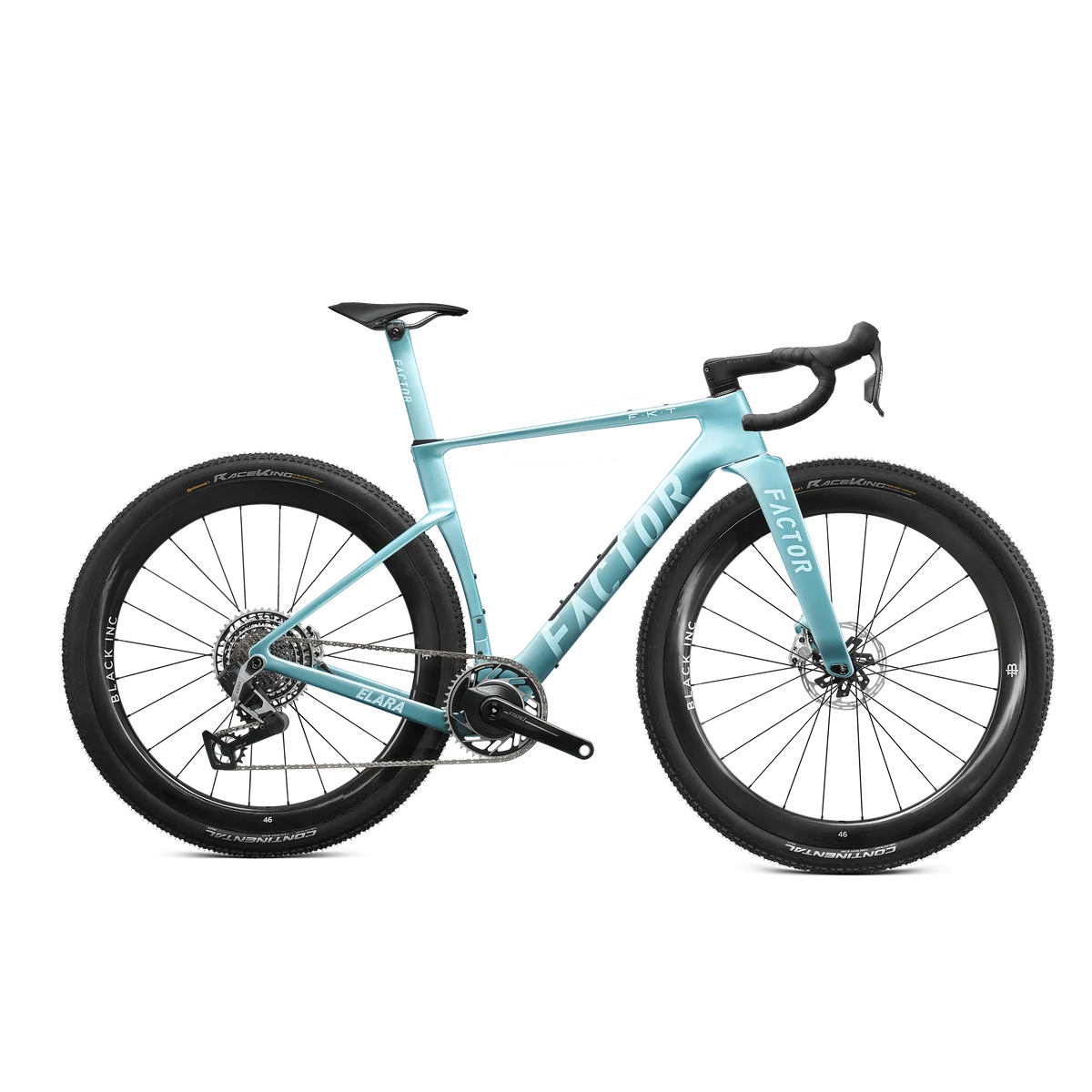

The Factor ELARA SRAM RED XPLR with Power Meter is a premium gravel race bike engineered for maximum speed, control, and performance across demanding mixed-surface terrain. Its true monocoque carbon frame combines low weight, aerodynamic efficiency, stiffness, and clearance for tires up to 57mm (2.2") with a 1x setup. The bike features a 13-speed electronic 1x drivetrain with a wide 10–46T cassette, wireless shifting, and an integrated power meter for accurate performance tracking. The ELARA platform also provides integrated down-tube storage, dual bottle mounts, a top-tube feed port, UDH-compatible rear derailleur mounting, a T47A threaded bottom bracket, and an integrated aerodynamic cockpit. It is designed for fast gravel racing, technical courses, and high-performance mixed-surface riding.

Specs
  • Frame: True Monocoque Carbon
  • Fork: Full-Carbon Aero Fork
  • Frame Weight: Sub-1100g, Size M, painted
  • Frame Storage: Integrated Down-Tube Storage
  • Bottle Mounts: Two In-Triangle Mounts
  • Top-Tube Feed Port: Yes
  • Bottom Bracket: T47A Internal Threaded
  • Rear Derailleur Interface: UDH / Direct-Mount Compatible
  • Head Tube Angle: 71.3°–71.5°
  • Trail: Approximately 61mm
  • Chainstay: 420–425mm
  • Bottom Bracket Drop: 80mm
  • Bottom Bracket Drop 49/52cm: 82mm
  • Drivetrain: 1x Electronic
  • Groupset: SRAM RED XPLR AXS
  • Speeds: 13-Speed
  • Shifting: Wireless Electronic
  • Cassette: 10–46T
  • Rear Derailleur: RED XPLR AXS Full Mount
  • Crankset: RED XPLR AXS with Power Meter
  • Power Meter: Yes
  • Power Meter Type: Spider-Based
  • Chainring Options: 38T, 40T, 42T, 44T, 46T, 48T, 50T
  • Crank Lengths: 150mm, 155mm, 160mm, 165mm, 167.5mm, 170mm, 172.5mm, 175mm
  • Chainline: 47.5mm
  • Cockpit: Integrated Aero Barstem AB07
  • Cockpit Upgrade: Integrated Aero Barstem with Extensions AB03
  • Cable Routing: Internal
  • Seatpost: ELARA Seatpost
  • Intended Use: Fast Gravel Racing, Technical Gravel, Mixed-Surface Racing
  • Colors: Virescent Blue, Matte Carbon
Wheels
  • Wheel Size: 700C
  • Wheelset: Selectable according to build configuration
  • Tire Clearance 1x: Up to 57mm (2.2")
  • Tire Clearance 2x: Up to 47mm
  • Wheel Configuration: Gravel
  • Front Axle: 12x100mm Thru-Axle
  • Rear Axle: 12x142mm Thru-Axle
  • Brake Type: Hydraulic Disc
  • Tubeless Compatibility: Depends on selected wheelset and tire configuration
  • Minimum Tire Size with Gravel Wheelset: 47mm
Geometry
