Factor ONE Sponge Bob Edition Ultegra

About

Description

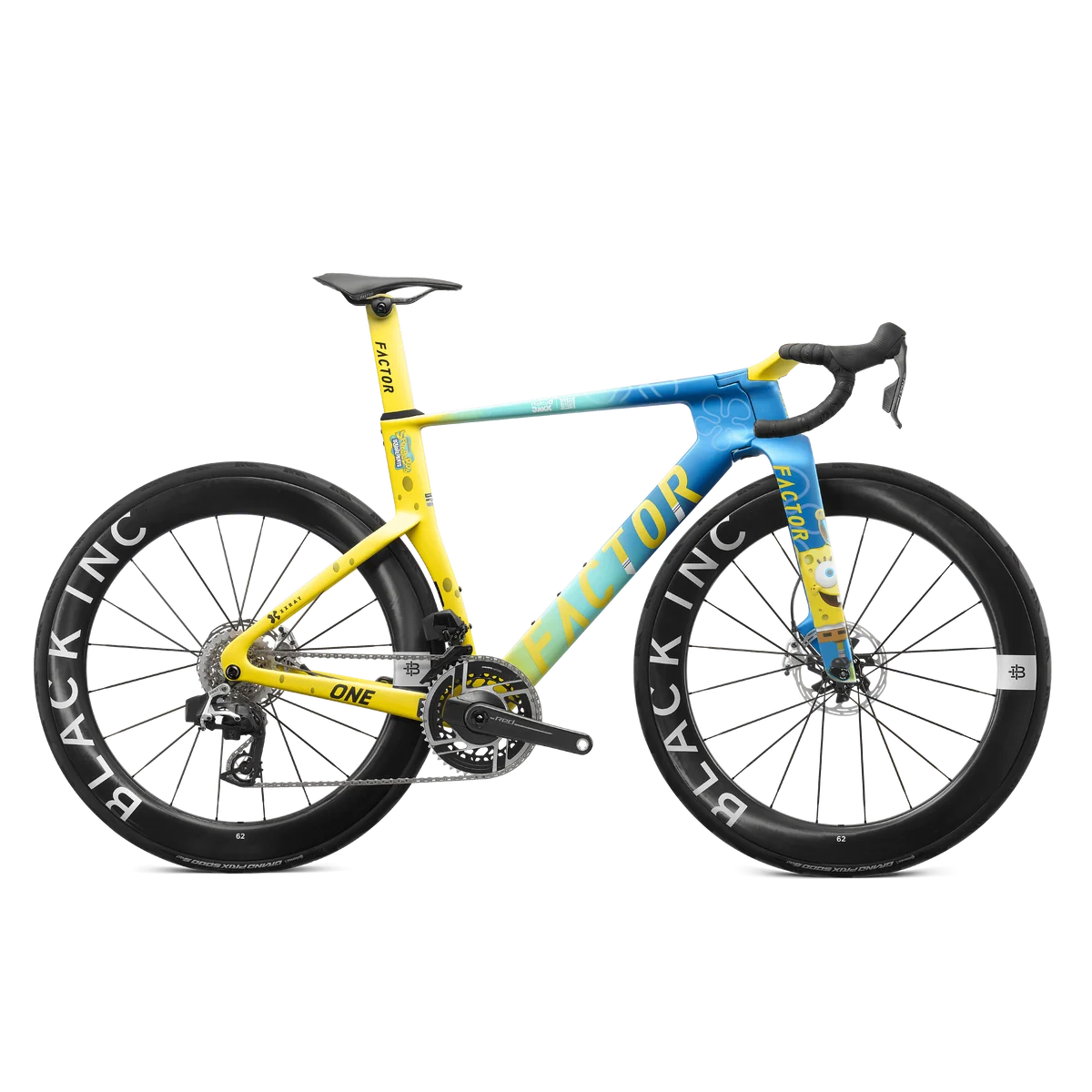

The Factor ONE SpongeBob Edition Shimano Ultegra is a premium aerodynamic road racing bike combining a high-performance carbon platform with an exclusive SpongeBob Edition finish. Built for speed, stiffness, and aerodynamic efficiency, the ONE features an advanced carbon frame, wide-stance aero fork, integrated barstem, and fully internal cable routing. The complete build is equipped with a Shimano Ultegra Di2 8100 2x12-speed groupset, including a 52/36T crankset and 11-34T cassette. A Black Inc SIXTY TWO 700c wheelset provides deep-section aerodynamic performance, while the frame and fork accommodate tires up to 34mm measured. Available in multiple frame sizes with selectable wheelset, seatpost, crank, and cockpit configurations, the ONE is designed for competitive road racing and high-speed riding.

Specs

Frame: Factor ONE

Frame Material: TeXtreme®, Toray®, Nippon Graphite® Pitch-Based Fiber

Fork: ONE Wide Stance Fork

Rear Suspension: N/A

Headset: 1-1/8" Upper and Lower

Handlebar: Factor Integrated Barstem

Barstem Reach: 80mm

Barstem Drop: 120mm

Bar Width: 380mm

Seatpost: ONE

Seatpost Setback: 0mm / 30mm

Saddle Rail Clamps: 7x7 / 7x9

Bottom Bracket: CeramicSpeed T47A Aluminum Cups

Cable Routing: Internal

Compatible Components: Electronic

Crankset: Shimano Ultegra 52/36T

Bottom Bracket Standard: T47A

Chain: Shimano Ultegra Di2

Cassette: Shimano 11-34T

Front Derailleur: Shimano Ultegra Di2 8100

Rear Derailleur: Shimano Ultegra Di2 8100

Shifters: Shimano Ultegra Di2 8100

Brakes: Hydraulic Disc

Brake Rotors: 160mm Front / 140mm Rear

Max Rotor Size: 160mm Front / 160mm Rear

Drivetrain: 2x12-Speed

Groupset: Shimano Ultegra Di2 8100

Max Chainring: 54T

Front Axle: 12x100mm Thru-Axle

Rear Axle: 12x142mm Thru-Axle

Max Tire Clearance: 34mm Measured

Pedals: Not Included

Motor: N/A

Battery: N/A

Display: N/A

Charger: N/A

Weight: Not Specified

Color: SpongeBob Edition

Intended Use: Road Racing, Aerodynamic Road Riding, High-Speed Cycling

Warranty: Limited Lifetime Warranty

47cm

  • Frame Size: 47cm
  • Stack: 503mm
  • Reach: 390mm
  • Head Tube Angle: 72.5°
  • BB Drop: 77mm
  • Trail: 57.4mm
  • Fork Rake: 48mm
  • Chainstay: 405mm
  • Wheelbase: 974mm
  • Seat Tube Angle: 76.5°

52cm

  • Frame Size: 52cm
  • Stack: 523mm
  • Reach: 396mm
  • Head Tube Angle: 73.3°
  • BB Drop: 77mm
  • Trail: 58mm
  • Fork Rake: 43mm
  • Chainstay: 405mm
  • Wheelbase: 974mm
  • Seat Tube Angle: 76°

54cm

  • Frame Size: 54cm
  • Stack: 542mm
  • Reach: 404mm
  • Head Tube Angle: 73.3°
  • BB Drop: 75mm
  • Trail: 58mm
  • Fork Rake: 43mm
  • Chainstay: 405mm
  • Wheelbase: 988mm
  • Seat Tube Angle: 76°

56cm

  • Frame Size: 56cm
  • Stack: 565mm
  • Reach: 412mm
  • Head Tube Angle: 73.3°
  • BB Drop: 75mm
  • Trail: 58mm
  • Fork Rake: 43mm
  • Chainstay: 405mm
  • Wheelbase: 1003mm
  • Seat Tube Angle: 75.5°

58cm

  • Frame Size: 58cm
  • Stack: 587mm
  • Reach: 421mm
  • Head Tube Angle: 73.3°
  • BB Drop: 75mm
  • Trail: 58mm
  • Fork Rake: 43mm
  • Chainstay: 408mm
  • Wheelbase: 1022mm
  • Seat Tube Angle: 75.5°
Wheels

Wheelset: Black Inc SIXTY TWO

Wheel Size: 700C

Rim Material: High Modulus Carbon Fiber

Rim Depth: 62mm Front / 62mm Rear

Rim Width: 29mm External / 23mm Internal

Front Hub: HU-08 High Flange Alloy Body WT

Rear Hub: HU-08 High Flange Alloy Body WT

Hub Width: 100mm Front / 142mm Rear

Axle Type: 12mm Thru-Axle

Bearings: Ceramic

Brake Interface: Center Lock

Freehub Compatibility: Shimano HG 11/12-Speed / SRAM 10/11/12-Speed

Spokes: 20 Black Inc Straightpull Aero Carbon Spokes

Spoke Pattern: 2x Front / 2x Rear

Tire Type: Tubeless / Clincher

Recommended Tire Size: 28mm

Tubeless Ready: Yes

Wheel Weight: 1398g Pair

Wheel Finish: UD Glossy Clearcoat

Rim Classification: ASTM Level 1

Geometry
