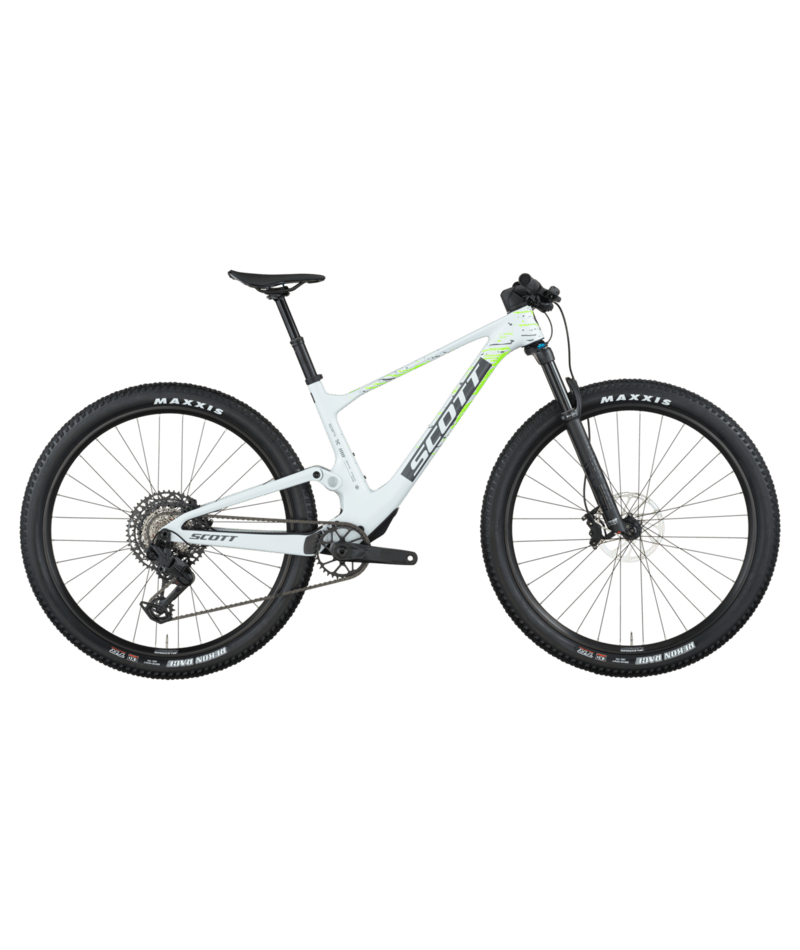

Spark RC Comp

Frame: Spark RC Carbon HMF, Integrated Suspension Technology, Flex Pivot, Adjustable Head Angle, Syncros Cable Integration System, BB92, UDH Interface, 12×148 mm with 55 mm Chainline

Fork: FOX 32 Float Rhythm Grip, 3 Modes, Kabolt 15×110 mm Axle, 44 mm Offset, Tapered Steerer, 120 mm Travel, Rebound Adjust & Lockout

Rear Shock: FOX Float LV Custom EVOL Performance Trunnion, 3 Modes (Lockout–Trail–Descend), DPS, Rebound Adjust, T165×45 mm, 120 mm Travel

Remote System: SCOTT TwinLoc Technology, Suspension & Dropper Remote, 3 Suspension Modes

Rear Derailleur: SRAM Eagle 70 Transmission, 12-Speed

Shifters: SRAM Eagle 70 Trigger

Crankset: SRAM Eagle 70 Transmission, DUB, 55 mm CL, 34T

Chainguide: SCOTT Custom

Bottom Bracket: SRAM DUB PF92 MTB Wide, 41×92 mm Shell

Cassette: SRAM Eagle XS-1270 V2 Transmission, 10–52T

Chain: SRAM CN Eagle 70 Transmission

Brakes: SRAM DB4 4-Piston Disc

Rotors: SRAM Centerline CL Rotors – 180 mm (Front) / 160 mm (Rear)

Handlebar: Syncros Fraser 2.0 XC Alloy 6061 D.B., Flat Bar, 8°, 740 mm Width, Syncros Performance XC Lock-On Grips

Stem: Syncros XC 2.0, Cable Integration System, -12°, 6061 Alloy, 31.8 mm Clamp

Seatpost: Syncros Duncan Dropper 1.5XC, 31.6 mm, 100 mm Travel (All Sizes

Saddle: Syncros Belcarra V2.0 Cut Out, CRMO Rails

Headset: Syncros–Acros Angle Adjust & Cable Routing HS System, ±0.6° Head Angle Adjustment, ZS56/28.6–ZS56/40 MTB

Approx. Weight: 28.22 lbs (Tubeless Setup)

Max System Weight: 130 kg (Bike + Rider + Equipment)

S – Compact XC geometry for fast, nimble handling

M – Balanced geometry for efficient cross-country performance

L – Race geometry tuned for power and stability

XL – Endurance geometry optimized for comfort on long XC rides
