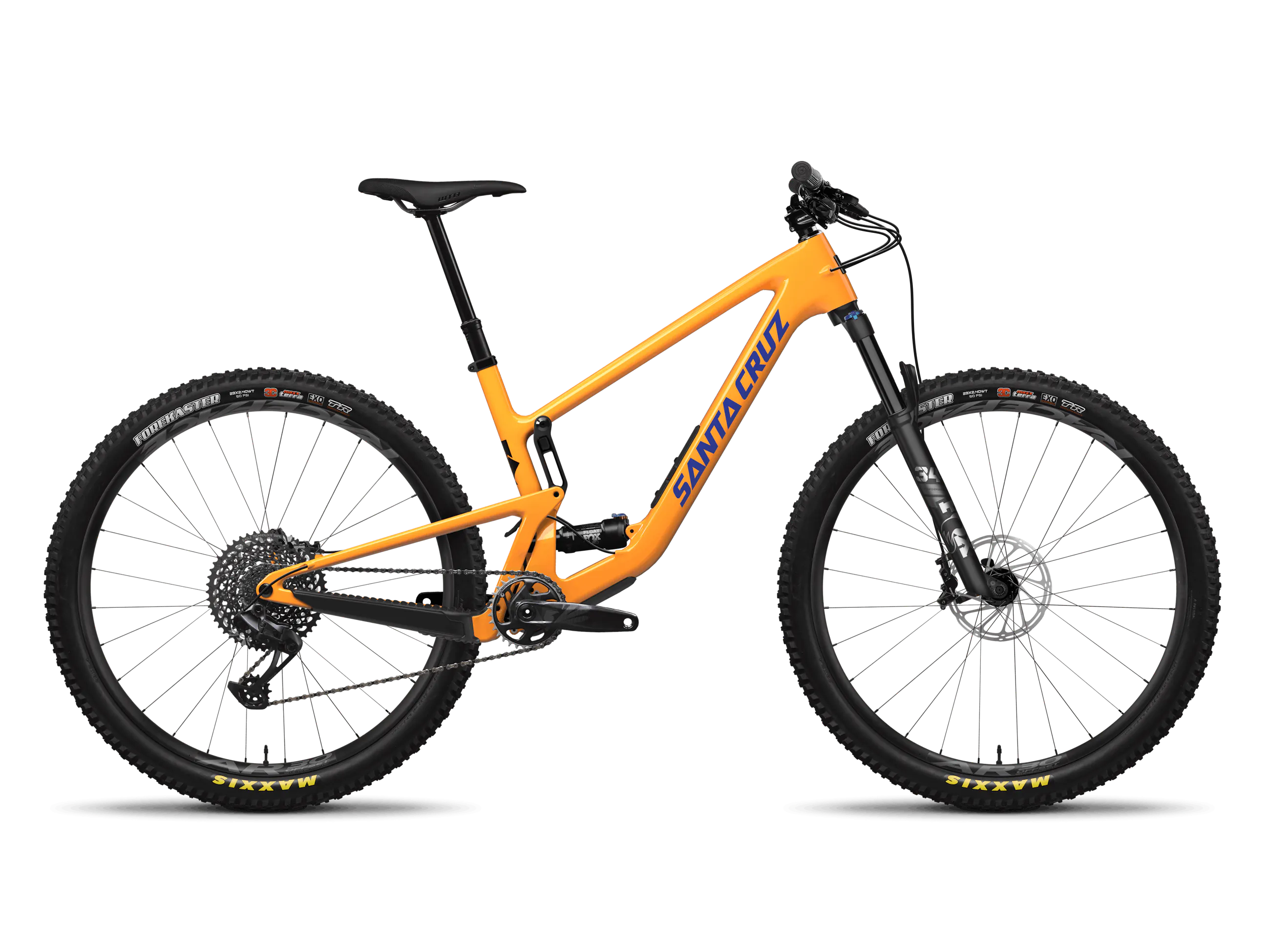

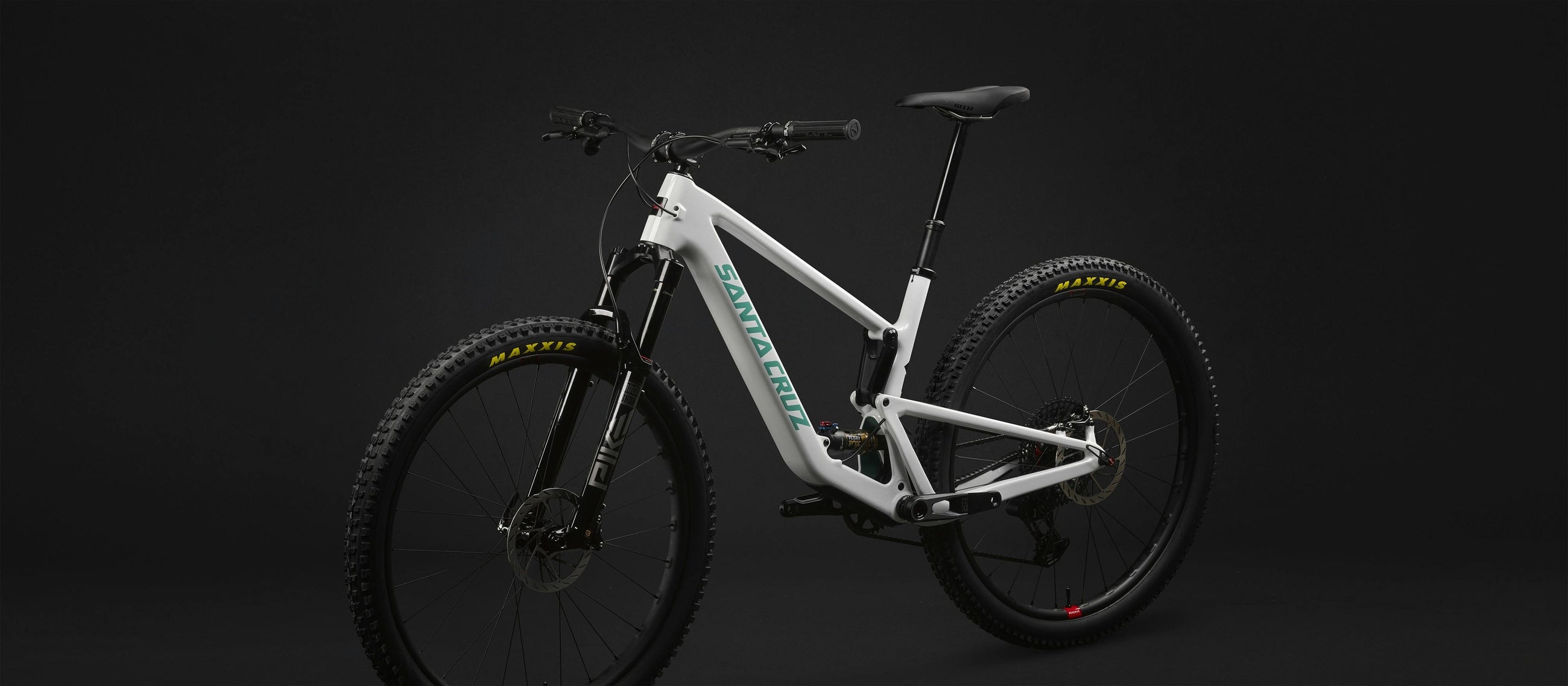

The Downhiller's XC Bike
The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of "power hour" hot laps or long days in the saddle harvesting the best trails. The highly-refined VPP™ suspension on the Tallboy combines pedaling efficiency and all-out bump-chomping prowess. If ever there was a gravity riders’ XC bike, the Tallboy is it.
Available in: Carbon C and Carbon CC
Wheel size: 29-inch
Front travel: 130mm
Rear travel: 120mm
!!! CALL FOR AVAILABITY ON OTHER COLOR AND GROUP COMPONENTS !!!
Material: Carbon C
Travel: 120
Wheel Size: 29
Rear Shock: FOX Float Performance Elite, 190x45
Fork: FOX 34 Float Performance, 130mm
Rear Derailleur: SRAM GX Eagle, 12spd
Right Shifter: SRAM NX Eagle, 12spd
Cassette: SRAM PG1230, 12spd, 11-50
Chain: SRAM NX Eagle, 12spd
Bottom Bracket: SRAM DUB 68/73mm Threaded BB
Headset: FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
Tires: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Hubs: DT Swiss 370
Rim: RaceFace AR Offset 30, 29"
Rotor: Avid Centerline, 180mm
Brakes: SRAM G2 R
Crankset: SRAM GX Eagle 148 DUB 32t
Handlebars: Burgtec RideWide Alloy
Stem: Burgtec Enduro MK3, 42mm
Saddle: WTB Silverado, CroMo
Seatpost: OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6
Grips: Santa Cruz Bicycles House Grips
Geometry
All units are in millimeters or degrees.
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Reach | hi/lo | 405/403 | 430/428 | 455/453 | 475/473 | 495/493 | 520/518 |
| Stack | hi/lo | 601/603 | 610/612 | 619/621 | 628/630 | 646/648 | 656/658 |
| Head Tube Angle | hi/lo | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 | 65.7/65.5 |
| Seat Tube Length | 370/370 | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| Front Center | hi/lo | 708/708 | 737/737 | 766/766 | 790/790 | 818/818 | 847/847 |
| BB Height | hi/lo | 335/332 | 335/332 | 335/332 | 335/332 | 335/332 | 335/332 |
| BB Drop | hi/lo | 38/41 | 38/41 | 38/41 | 38/41 | 38/41 | 38/41 |
| Wheelbase | hi/lo | 1138/1138 | 1167/1167 | 1199/1199 | 1227/1227 | 1257/1258 | 1290/1291 |
| Rear Center | hi/lo | 430/431 | 430/431 | 433/434 | 437/438 | 439/440 | 443/444 |
| Head Tube Length | 95/95 | 105/105 | 115/115 | 125/125 | 145/145 | 155/155 |
| Top Tube Length | hi/lo | 555/556 | 579/580 | 602/603 | 622/623 | 644/645 | 671/671 |
| Seat Tube Angle | hi/lo | 76/75.7 | 76.3/76 | 76.7/76.4 | 76.8/76.6 | 77/76.8 | 77.1/76.8 |
| Standover Height | hi/lo | 680/676 | 693/691 | 696/693 | 698/695 | 698/695 | 701/698 |
