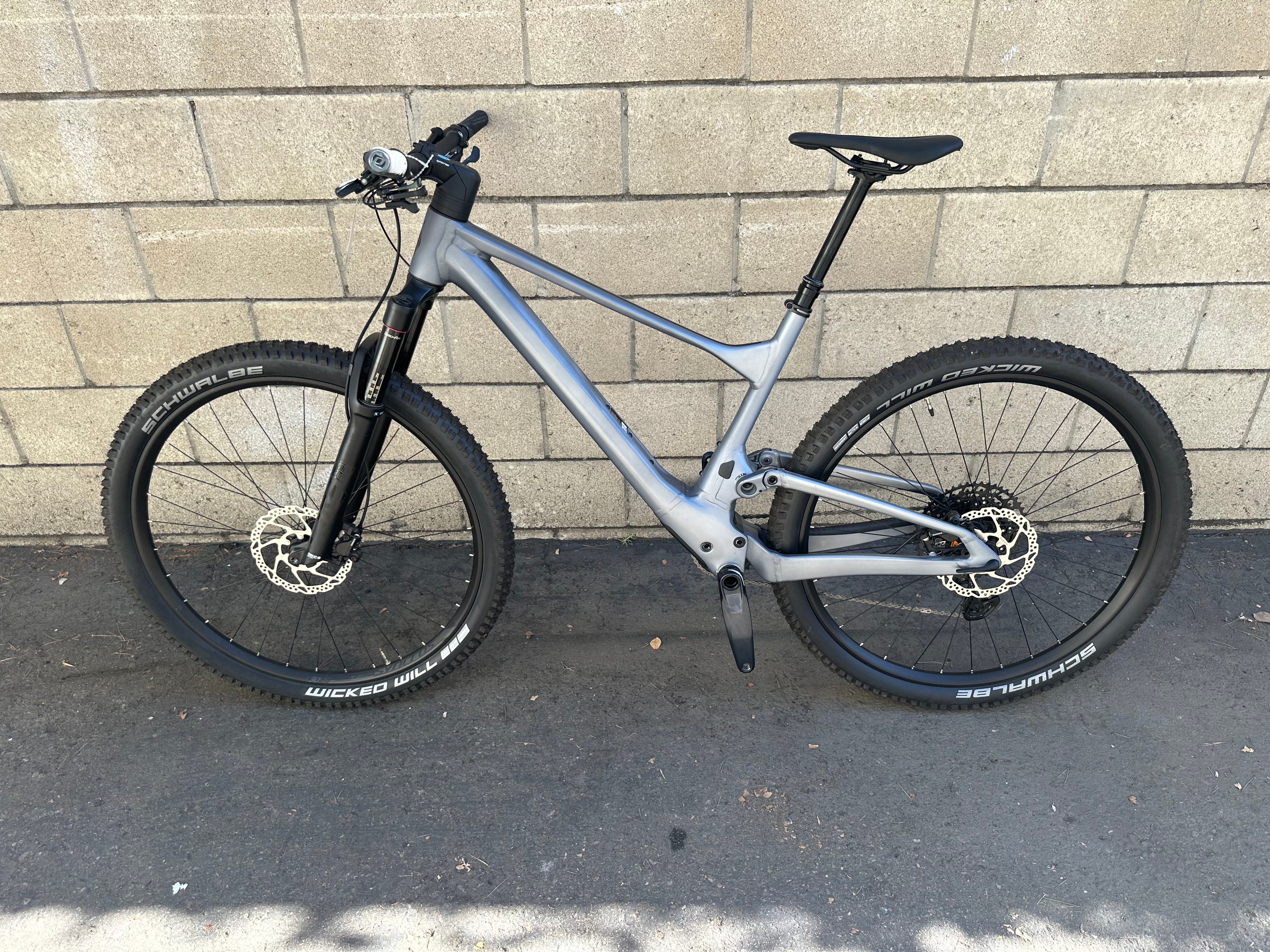

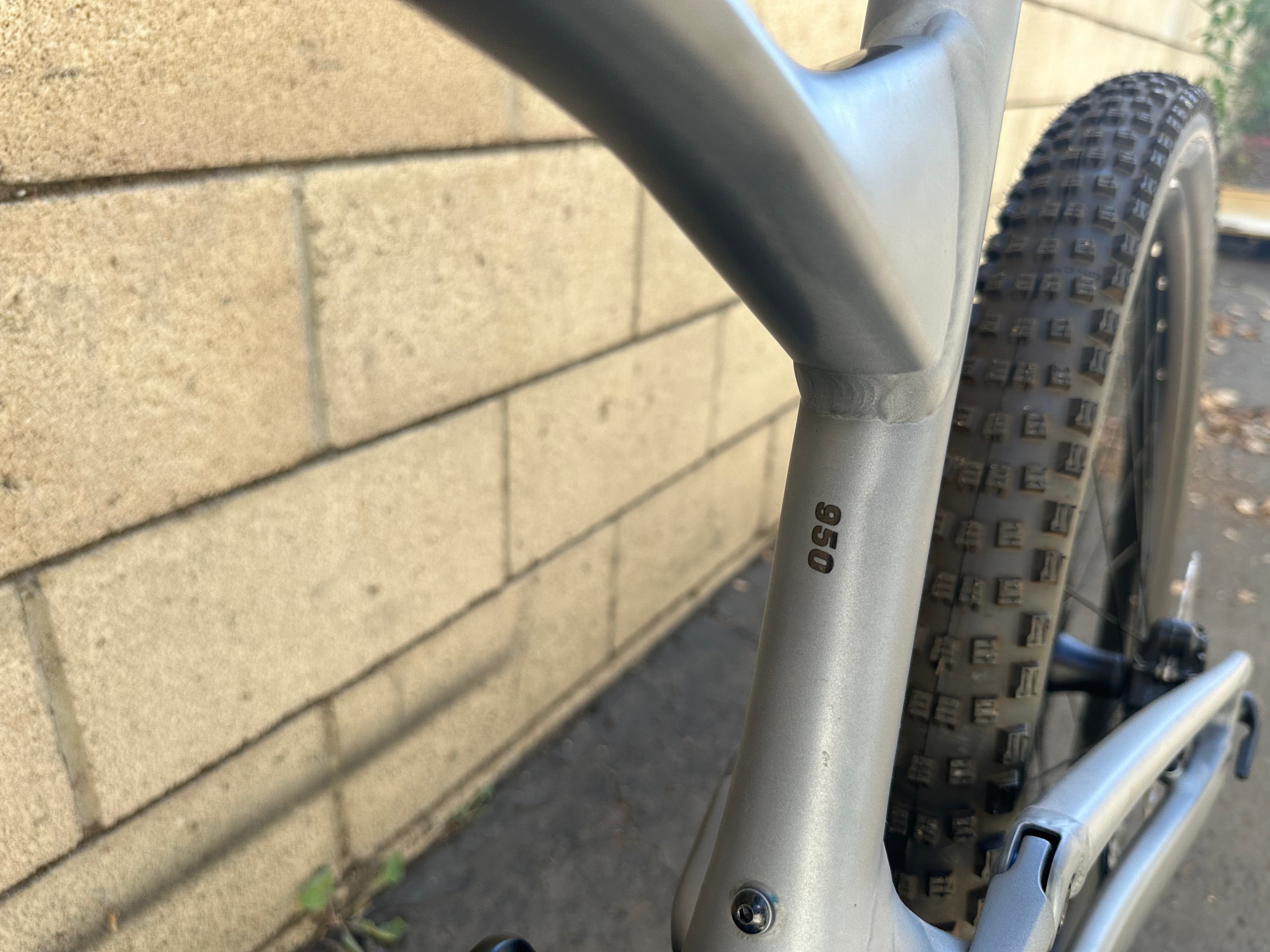

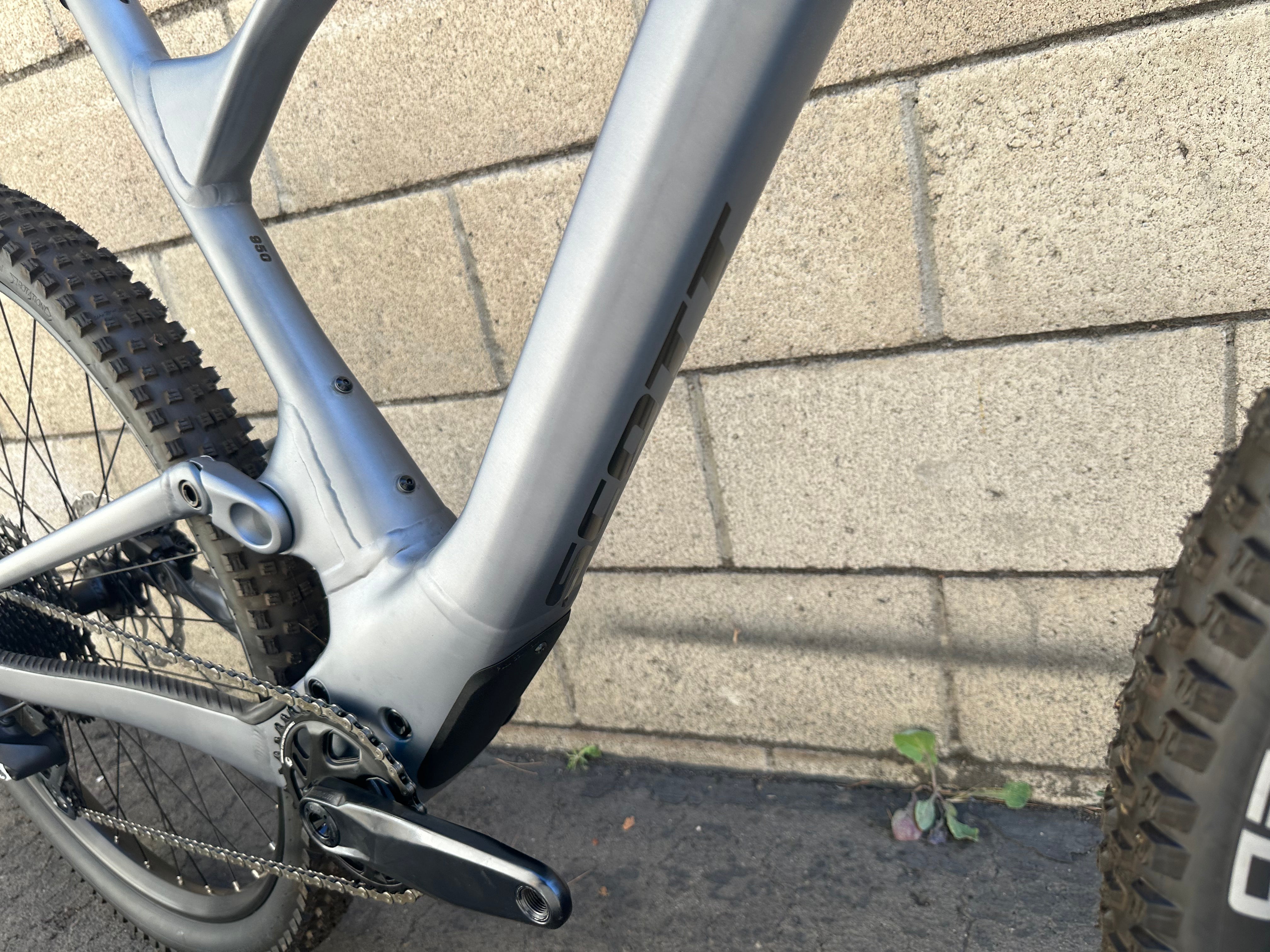

FRAME
Spark Alloy SL 6011
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

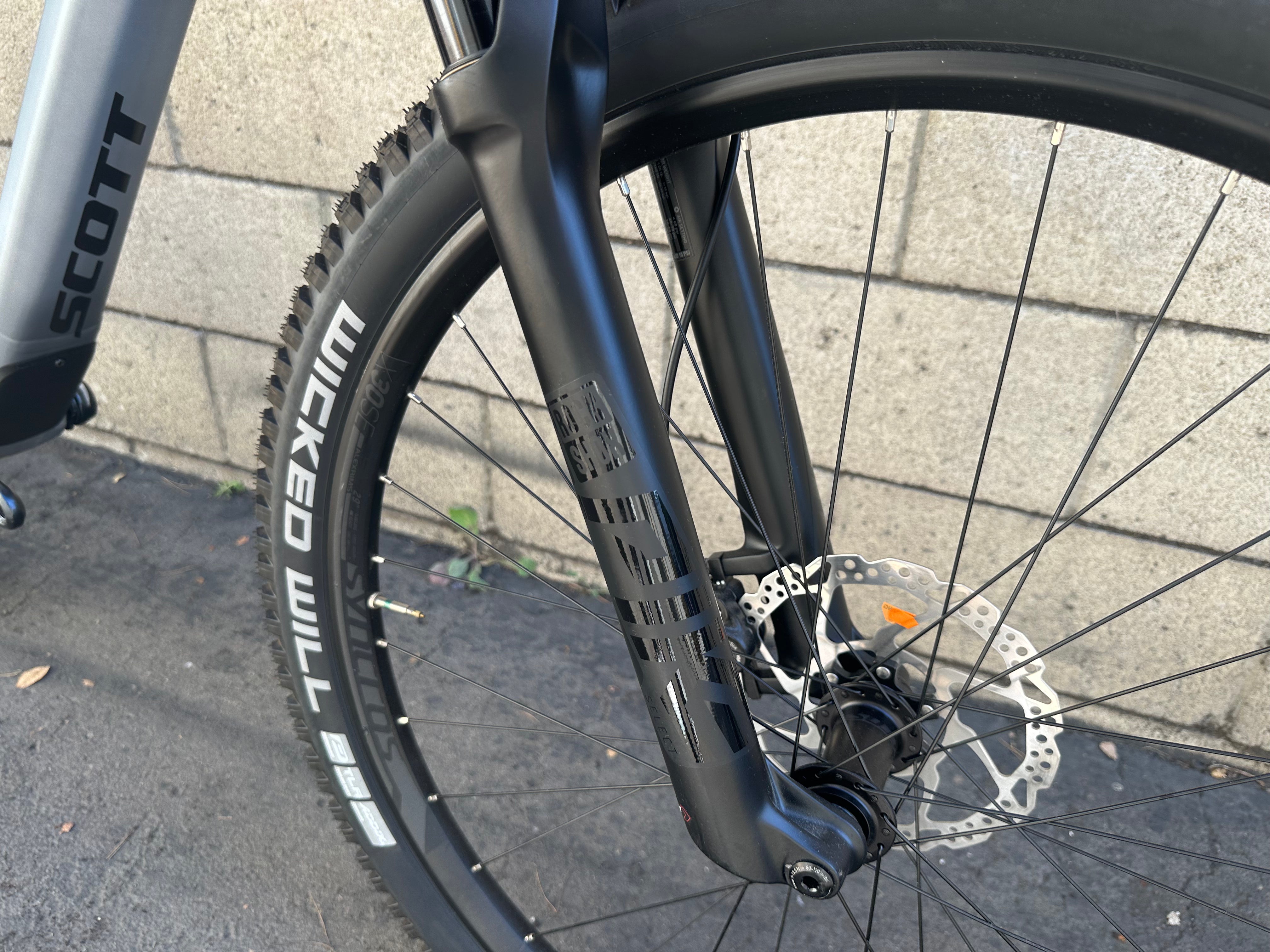

FORK
RockShox Pike Select RL3 Air Custom Charger 3-Mode Damper 15x110mm Maxle Lite / 42mm offset / Tapered steerer Lockout / Reb. Adj. / 130mm travel
REAR SHOCK
RockShox Deluxe Select RL3 Trunnion 3 modes / Lockout-Trail-Descend Debon Air / Reb. Adj.
Travel 120mm / T165X45mm
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

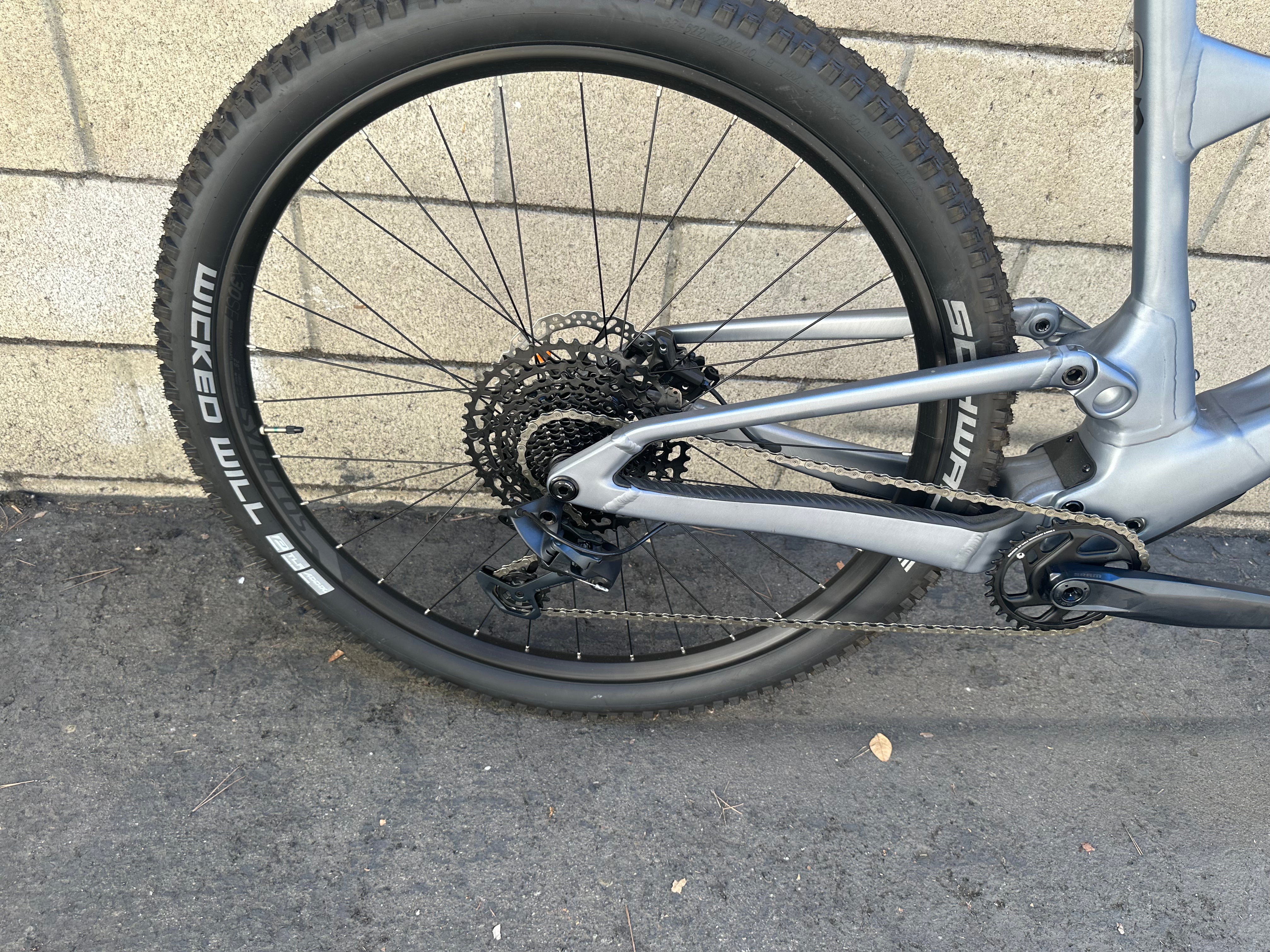

REAR DERAILLEUR
SRAM GX Eagle 12 Speed
SHIFTERS
SRAM NX Eagle Trigger

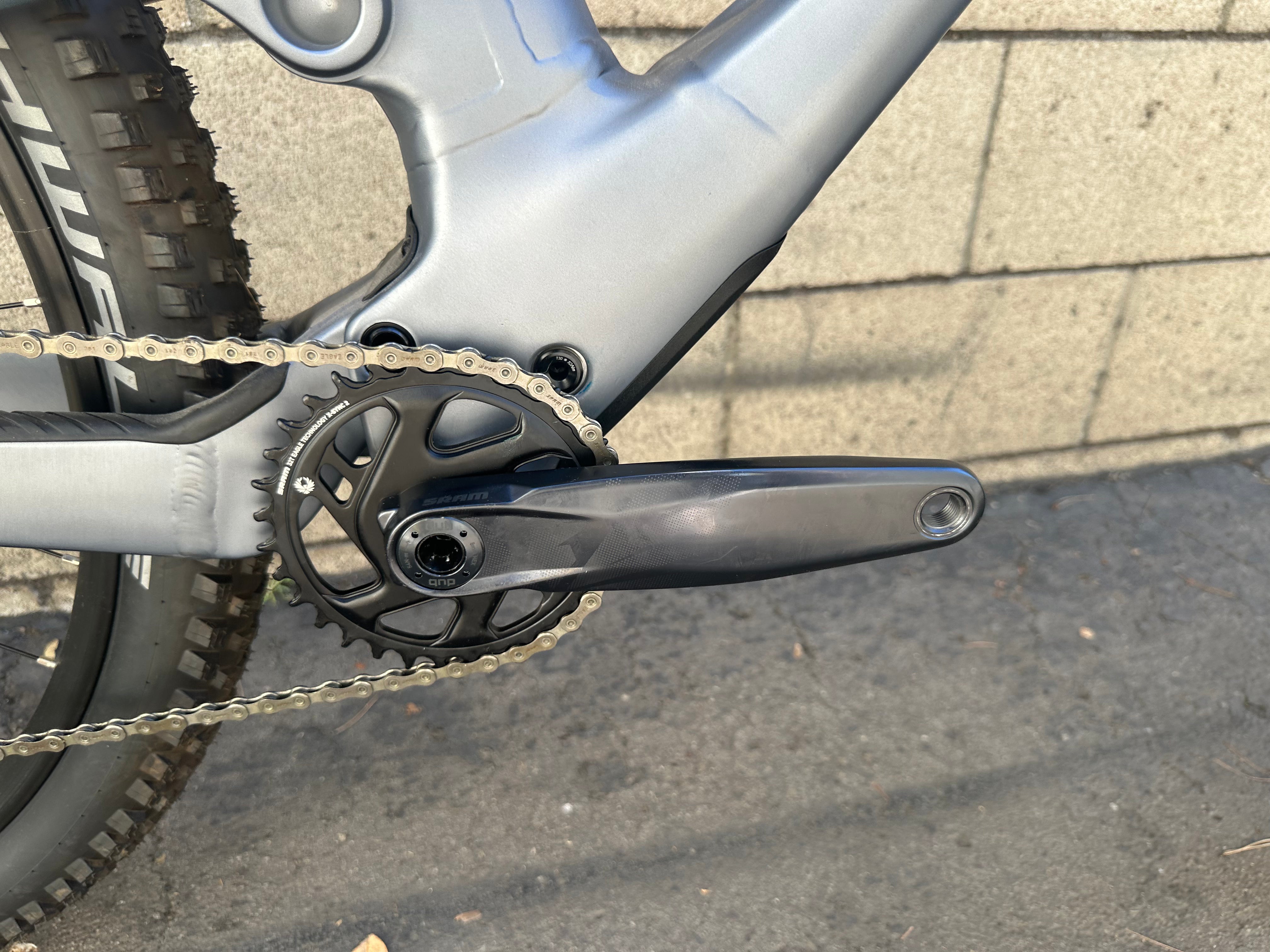

CRANKSET
SRAM X1 Eagle DUB 55mm CL / 32T
BB-SET
SRAM DUB PF 92 MTB Wide / shell 41x92mm
CHAIN
SRAM CN NX Eagle
CASSETTE
SRAM SX-PG1210 / 11-50 T

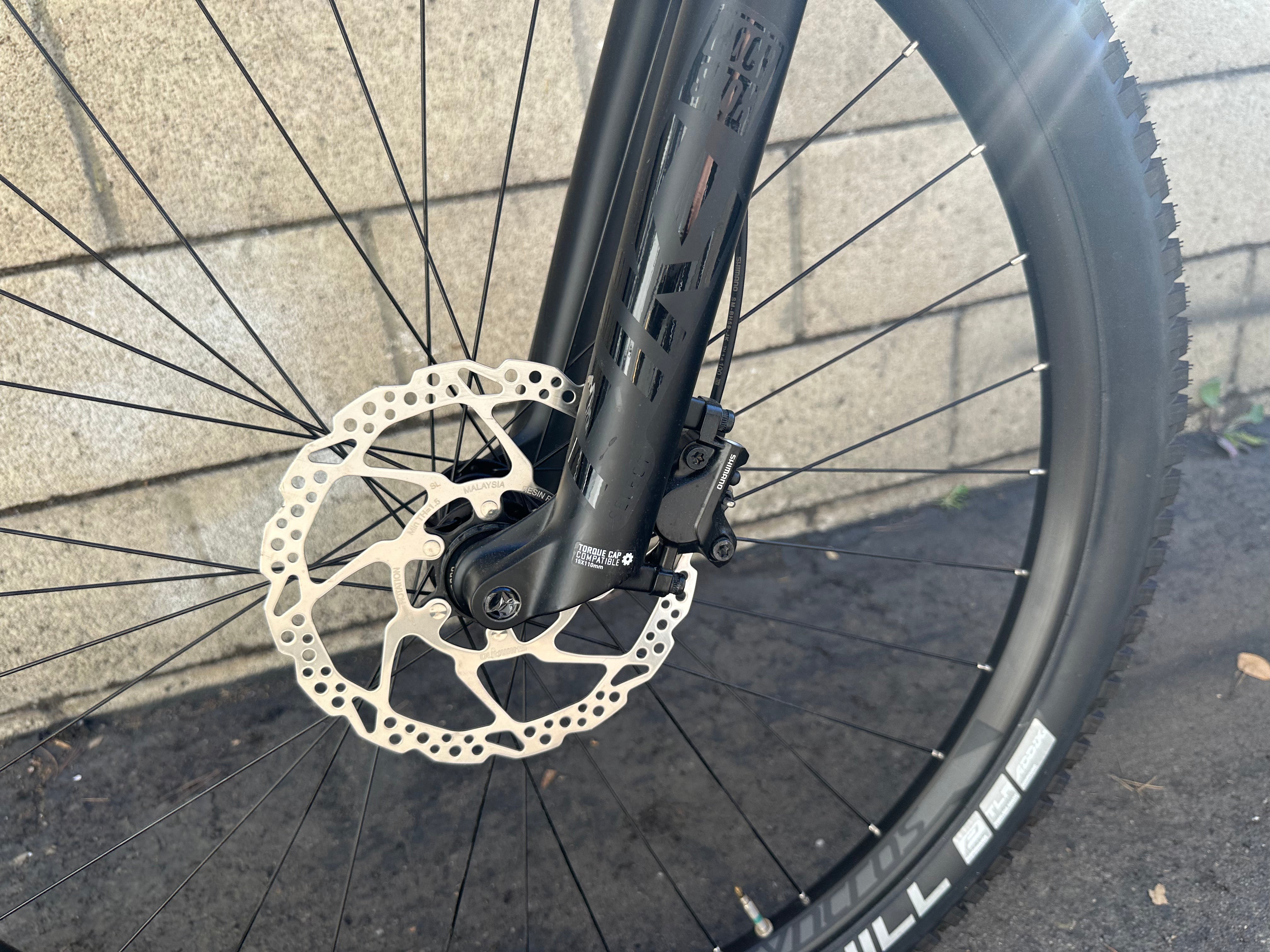

BRAKES
Shimano MT501 Disc

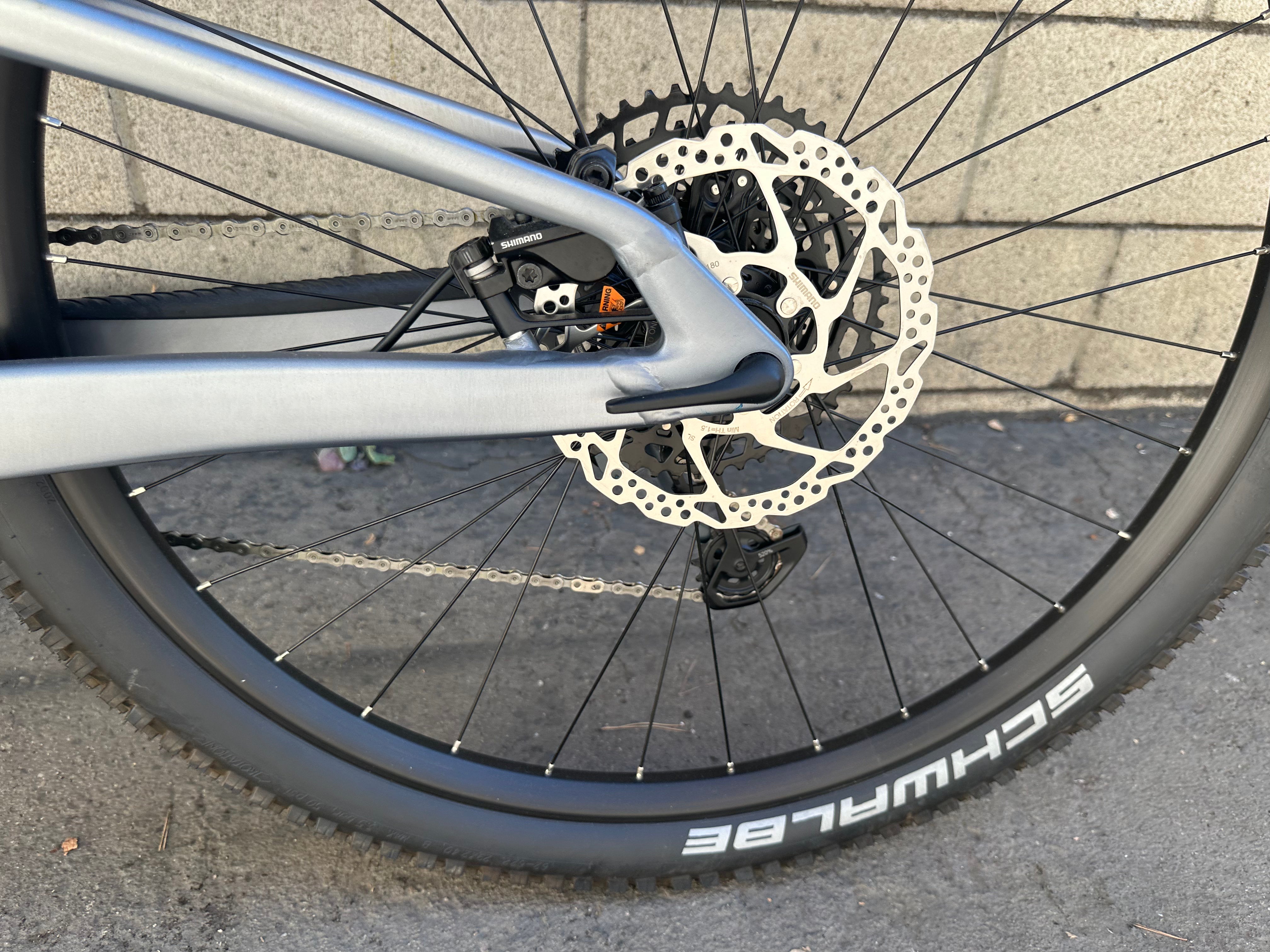

ROTOR
Shimano SM-RT64 CL / F&R 180mm

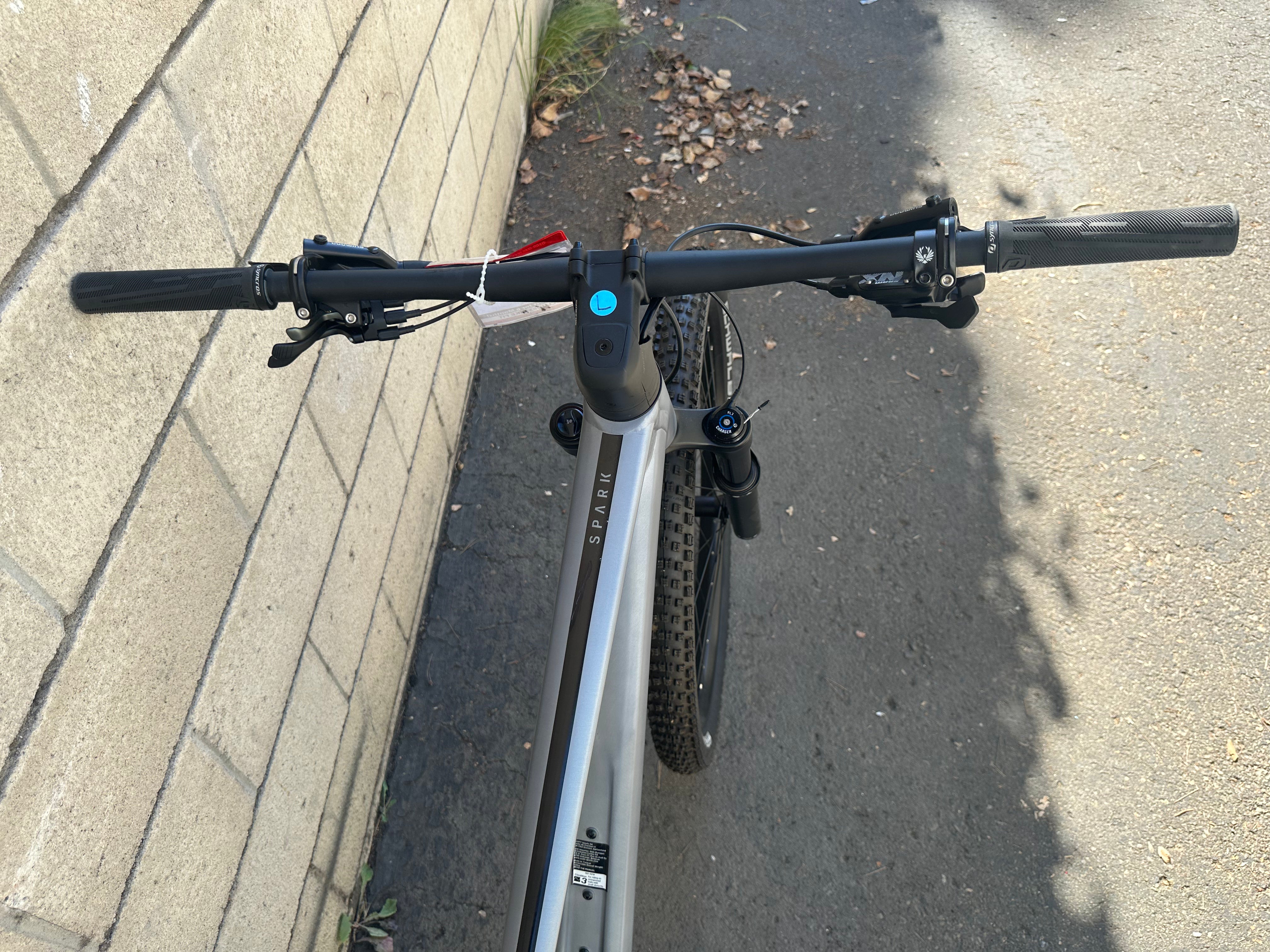

HANDLEBAR
Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm
Syncros Pro lock-on grips
H'STEM
Syncros DC 3.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
SEATPOST
Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L & XL size 150mm
SEAT
Syncros Tofino 2.5 Regular
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
HUB (FRONT)
Formula CL-811 / 15x110mm
HUB (REAR)
Formula CL-148S / 12x148mm Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
SPOKES
Stainless Black 15G / 1.8mm
RIMS
Syncros X-30SE / 32H / 30mm

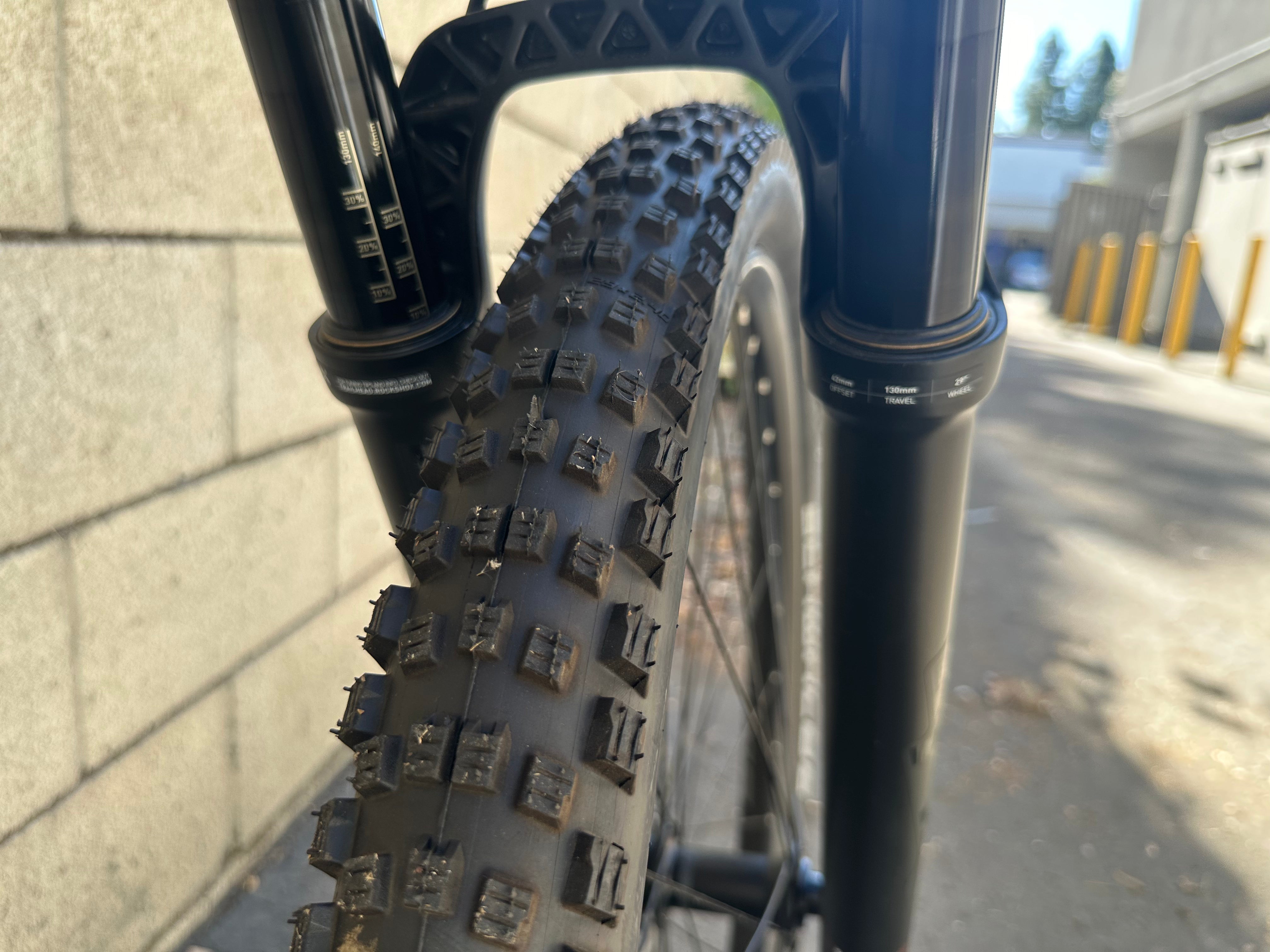

FRONT TIRE
Schwalbe Wicked Will 29x2.4" Performance / TLR / Foldable / Addix
REAR TIRE
Schwalbe Wicked Will / 29x2.4"
Performance / TLR / Foldable / Addix
APPROX WEIGHTS IN KG
14.5 (with tubes)
APPROX WEIGHTS IN LBS
31.97 (with tubes)
MAX. SYSTEM WEIGHT
128 kg
The overall weight includes the bike, the rider, the equipment, and possible
additional luggage.
