$4,500.00
DESCRIPTION

The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

BIKE SPECIFICATIONS

  • Frame Material ENVE M.O.D Carbon
  • Fork Material ENVE M.O.D Carbon
  • Target Application Road Race/Performance
  • Sizes (cm) 47, 50, 52, 54, 56, 58, 60
  • Fork Rake 55, 51, 47, 43, 39
  • Frame Size/Fork Rake 47cm/55, 50cm/51, 52cm/47, 54cm/47,56cm/43, 58cm/43, 60cm/39
  • Frame Weight 850g +/- 2% (Size 56, Painted, No Hardware)
  • Headset ENVE Integrated IS52/IS52 Internal Drop-In
  • Headset Bearing 1.5″ IS52 Upper and Lower
  • Seat Post Diameter ENVE Aero
  • BB Type T47 Inboard Bearing
  • Brake Mount Flat Mount
  • Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
  • Rear Axle 12×142 (Total Length: 168, TP:1.5, TL:14)
  • Minimum Tire Size 25c
  • Optimal Tire Size 27c-32c
  • Maximum Listed Tire Clearance 35c
  • Frame Routing Internal

This specifications are from the information the brand releases and only apply to stock bicycles, build ups´ specifications will vary according to the components the buyer chooses.

IMPORTANT NOTES

COMPONENT COMPATIBILITY
  • Handlebars SES AR (38, 40, 42, 44, 46)
  • Stem ENVE Integrated (80, 90, 100, 110, 120, 130)
  • Seat Posts Aero 275mm x 0 OffsetAero 350mm x 0 OffsetAero 350mm x 20 Offset
DRIVETRAIN COMPATIBILITY
  • Shimano Mechanical 1x Yes
  • Shimano Mechanical 2x Yes
  • Shimano Electronic Di2 (1x/2x) Yes
  • SRAM Mechanical 1x Yes
  • SRAM Mechanical 2x No (Melee requires continuous housing for FD)
  • SRAM AXS (1x/2x) Yes
  • Campy Mechanical 1x Yes
  • Campy Mechanical 2x No (Melee requires continuous housing for FD)
  • Campy Wired EPS No
  • Campy Wireless EPS Yes
Color
Size
  • 47
  • 50
  • 52
  • 54
  • 56
  • 58
  • 60
Select quantity

Expected Ship Date: Wed May 14

Pickup available at Pulse Endurance Sports

Usually ready in 2-4 days

View store information

ENVE Melee Custom Road Framesets (Frames and Forks Only)

Pulse Endurance Sports

Pickup available,usually ready in 2-4 days

1020 Tierra Del Rey
A2
Chula Vista CA 91910
United States

+16196565222
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)
ENVE Melee Custom Road Framesets (Frames and Forks Only)

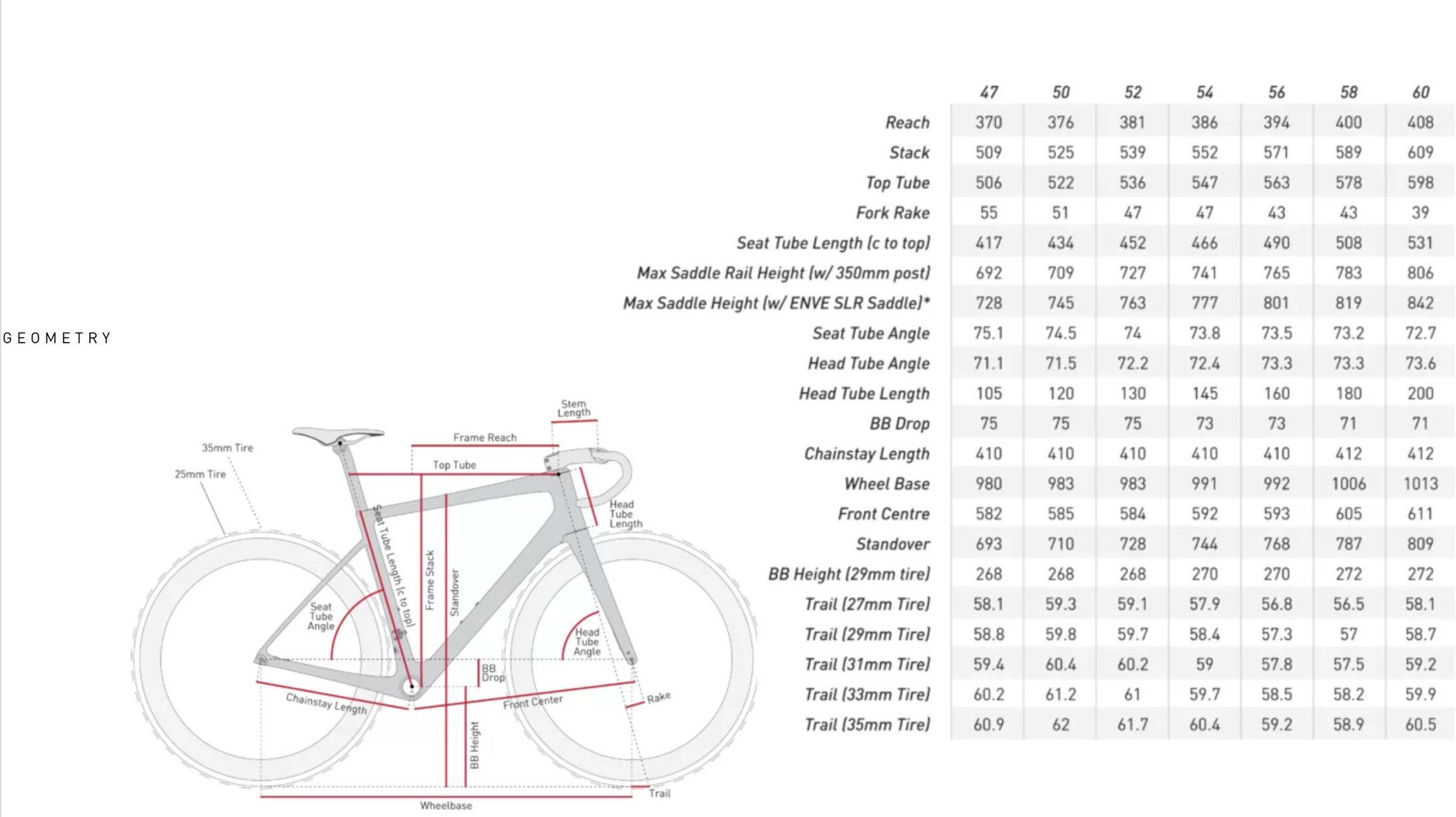

Bike Geometry
